RGB LED Neon Light

1.Guide Line:Pure Copper wires 4x0.75m2

2.Light source:SMD5050

3.PCB:High-quality rolled copper PCB board,

    70oz copper foil on both sides.

4.Beam Angel:270°

5.Material:Eco-Friendly PVC,anti-UV,PVC heat/cool stabilizer,high temp/low-temp resistant.

6.Light Effect:Vivid Neon lighting effect,uniform light,no dots

7.Waterproof: IP67

8.Warranty: 3 Years

9.MOQ: 1meter

10.Whatsapp/wechat:+86 134 1639 7586




Contact Us

Specification:


Item No

OL-RGB-NF-24V
Optional

RGB
Size

11.5X27mm
Working
Voltage
DC24V
Power

14.4W/m
LED TYPE

SMD5050
LED QTY

72pcs/m
CRI

Ra80+/Ra90+
Color

RGB
Cuttable Length

16.7CM
Max Run length

30m
Beam angle

270°
Bending DiameterΦ200mm
IP Rating

IP67
Working Temperature-20~+45℃
Storage Temperature-20~+60℃

Warranty


3years

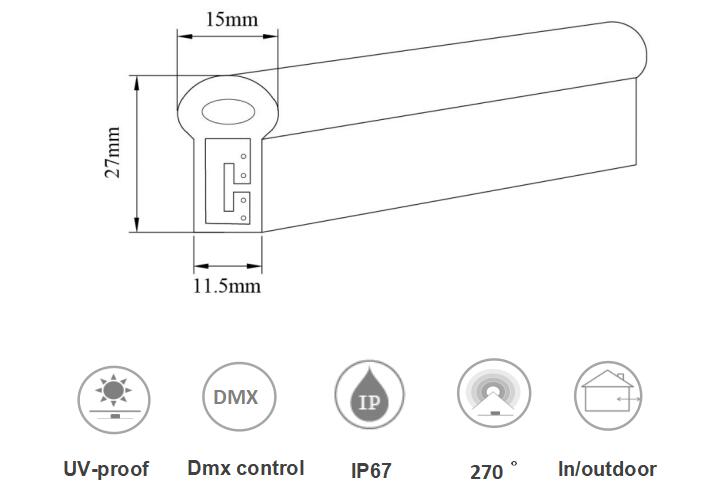

Dimension

LED RGB Neon Light.jpg

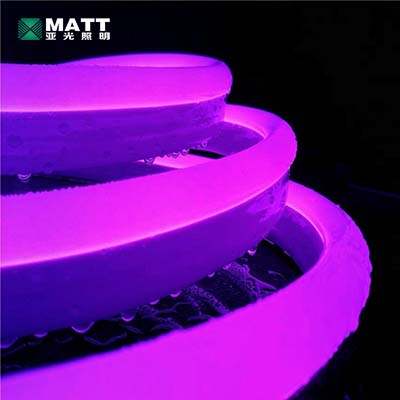

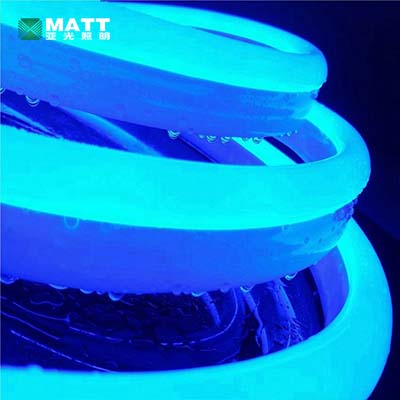

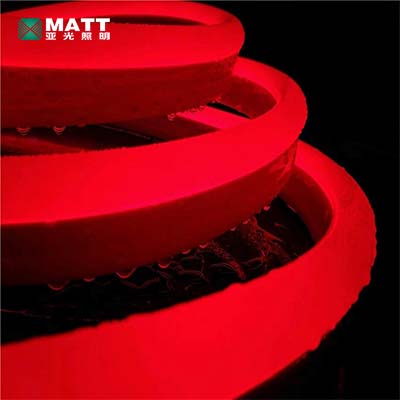

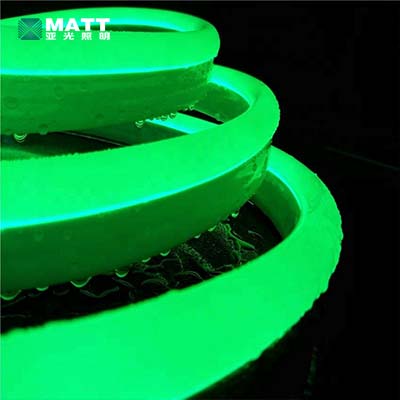

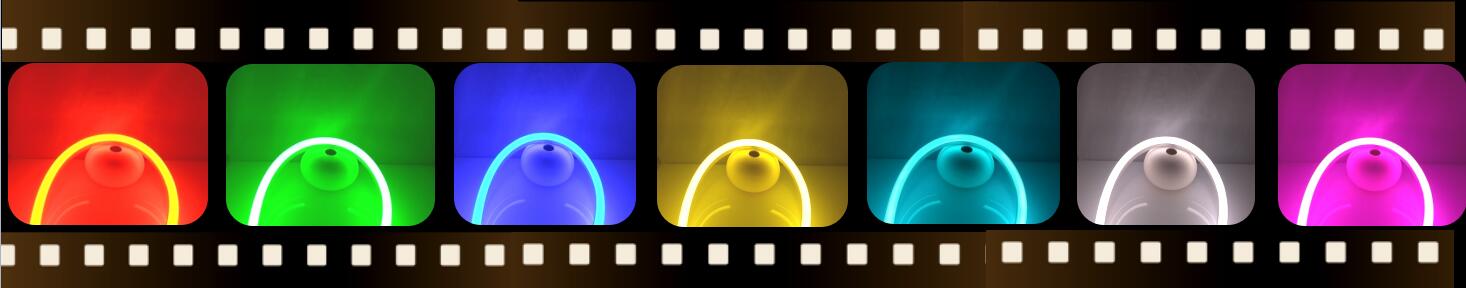

Color

RGB Neon Light.jpg

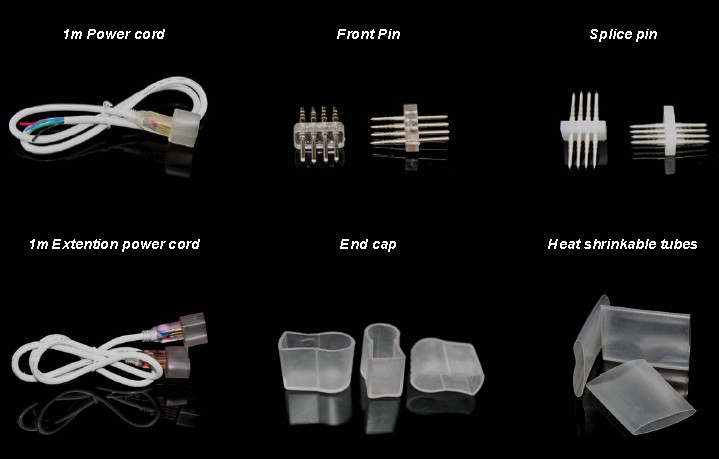

Accessories


RGB Neon Light accessories.jpg

Installation Method

Installation Manuel.png

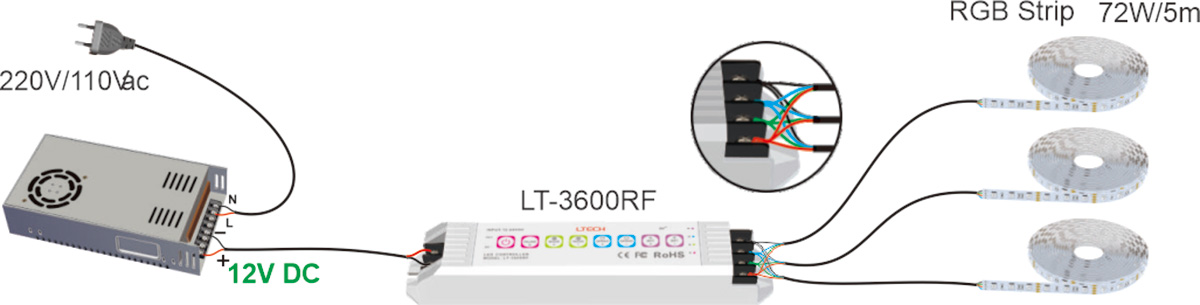

Controller wiring diagram

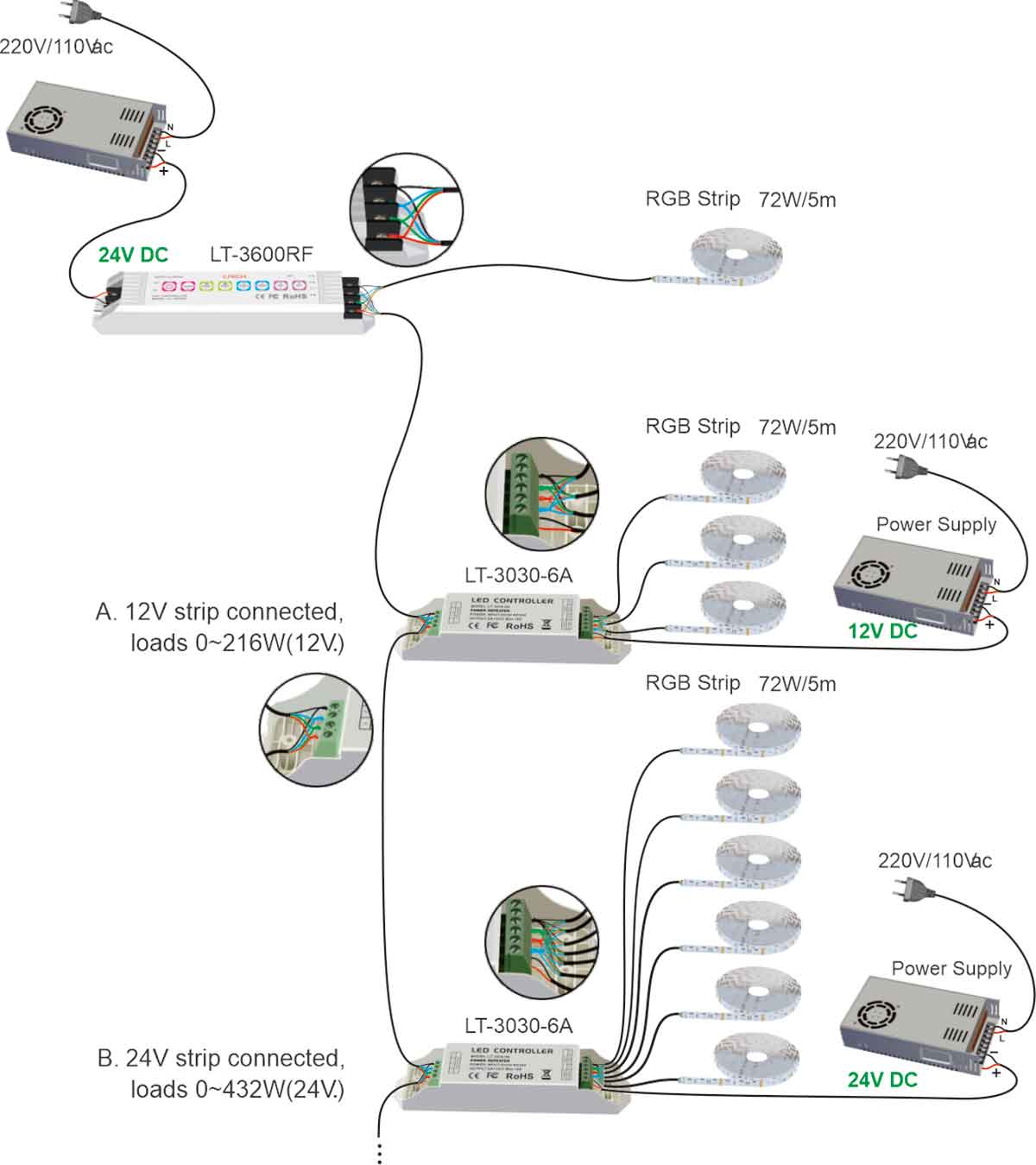

Synchronous discoloration
