1.Guide Line:Pure Copper wires 2x0.75m2
2.Light source:SMD2835
3.PCB:High-quality rolled copper PCB board,
4oz copper foil on both sides.
4.Beam Angel:270°
5.Material:Eco-Friendly PVC,anti-UV,PVC heat/cool stabilizer,high temp/low-temp resistant.
6.Light Effect:Vivid Neon lighting effect,uniform light,no dots
7.Waterproof: IP67
8.Warranty: 3 Years
9.MOQ: 1meter
10.Whatsapp/wechat:+86 134 1639 7586
Specification
| Item No | OL-NF-12V-A | OL-NF-12V-B | OL-NF-24V-A | OL-NF-24V-B |
| 11.5X27mm | 11.5X27mm | 11.5X27mm | 11.5X27mm | |
| Working Voltage | DC12V | DC12V | DC24V | DC24V |
| Power | 9W/m | 9W/m | 9W/m | 9W/m |
| LED TYPE | SMD2835 | SMD2835 | SMD2835 | SMD2835 |
| LED QTY | 84pcs/m | 84pcs/m | 84pcs/m | 84pcs/m |
| Beam Angle | 270° | 270° | 270° | 270° |
| CRI | Ra80+ or Ra90+ | Ra80+ or Ra90+ | Ra80+ or Ra90+ | Ra80+ or Ra90+ |
| Cutting Length | 3.57cm | 7.14cm | 14.3cm | 42.7cm |
| Color | Red/Green/Blue/Orange/Yellow/Lemon Yellow/Ice Blue/Marrsagreen/Hot Pink/Pink Purple | |||
| Max Run Length | 10m | 10m | 20m | 20m |
| Bending Diameter | 60mm | 60mm | 60mm | 60mm |
| IP Rating | IP67 | IP67 | IP67 | IP67 |
| Working Temperature | -20~+45℃ | -20~+45℃ | -20~+45℃ | -20~+45℃ |
| Storage Temperature | -20~+60℃ | -20~+60℃ | -20~+60℃ | -20~+60℃ |
| Warranty | 3years | 3years | 3years | 3years |
| Certificate | UL/CE/ROHS | UL/CE/ROHS | UL/CE/ROHS | UL/CE/ROHS |

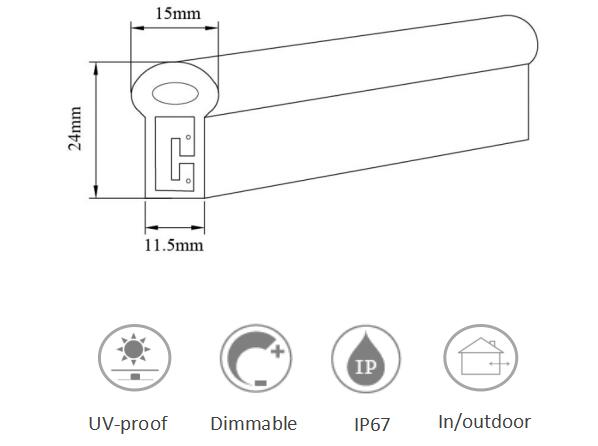

Dimension
Color
Accessories
Installation Method
wiring diagram
