Topview Neon Light

1.Guide Line:Pure Copper wires 2x0.75m2

2.Light source:SMD2835

3.PCB:High-quality rolled copper PCB board,

    4oz copper foil on both sides.

4.Beam Angel:180°

5.Material:Eco-Friendly PVC,anti-UV,PVC heat/cool stabilizer,high temp/low-temp resistant.

6.Light Effect:Vivid Neon lighting effect,uniform light,no dots

7.Waterproof: IP67

8.Warranty: 3 Years

9.MOQ: 1meter

10.Whatsapp/wechat:+86 134 1639 7586


Contact Us

Specification

Item NoSizeColor/CCTInput Volt.Power/mLED TYPELED/mCRICuttingMax Length (Single Feed)
OL-TNF-24V-120-WW17x16mm3000KDC24V10W/mSMD2835120cs/mRa80+ 10cm/65.6ft20m/78.7in
OL-TNF-24V-120-NW17x16mm4500KDC24V10W/mSMD2835120cs/mRa80+ 10cm/65.6ft20m/78.7in
OL-TNF-24V-120-CW17x16mm6500KDC24V10W/mSMD2835120cs/mRa80+ 10cm/65.6ft20m/78.7in
OL-TNF-24V-120-R17x16mmRedDC24V10W/mSMD2835120cs/mn/a10cm/65.6ft20m/78.7in
OL-TNF-24V-120-G17x16mmGreenDC24V10W/mSMD2835120cs/mn/a10cm/65.6ft20m/78.7in
OL-TNF-24V-120-B17x16mmBlueDC24V10W/mSMD2835120cs/mn/a10cm/65.6ft20m/78.7in
OL-TNF-24V-120-O17x16mmOrangeDC24V10W/mSMD2835120cs/mn/a10cm/65.6ft20m/78.7in
OL-TNF-24V-120-Y17x16mmYellowDC24V10W/mSMD2835120cs/mn/a10cm/65.6ft20m/78.7in
OL-TNF-24V-120-LY17x16mmLemon YellowDC24V10W/mSMD2835120cs/mn/a10cm/65.6ft20m/78.7in
OL-TNF-24V-120-P17x16mmHot PinkDC24V10W/mSMD2835120cs/mn/a10cm/65.6ft20m/78.7in
OL-TNF-24V-120-PP17x16mmPink PurpleDC24V10W/mSMD2835120cs/mn/a10cm/65.6ft20m/78.7in

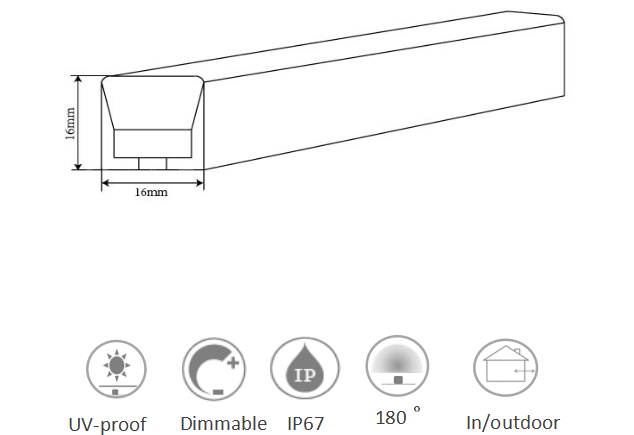

Dimension

Topview neon flex.png

Color

Matt Color Board.jpg


Accessories

Neon Light accessories.jpg


Installation Method

Installation Manuel.png

wiring diagram

Neon Light wiring connection.png
