Flat Neon Light

1.Guide Line:Pure Copper wires 2x0.75m2

2.Light source:SMD2835

3.PCB:High-quality rolled copper PCB board,

    4oz copper foil on both sides.

4.Beam Angel:180°

5.Material:Eco-Friendly PVC,anti-UV,PVC heat/cool stabilizer,high temp/low-temp resistant.

6.Light Effect:Vivid Neon lighting effect,uniform light,no dots

7.Waterproof: IP67

8.Warranty: 3 Years

9.MOQ: 1meter

10.Whatsapp/wechat:+86 134 1639 7586


Contact Us

Specification

Item NoOL-M-NF-12V-AOL-M-NF-12V-BOL-M-NF-24V-AOL-M-NF-24V-B
Size11.5X18mm11.5X18mm11.5X18mm11.5X18mm
Working VoltageDC12VDC12VDC24VDC24V
Power9W/m9W/m9W/m9W/m
LED TYPESMD2835SMD2835SMD2835SMD2835
LED QTY84pcs/m84pcs/m84pcs/m84pcs/m
Beam Angle180°180°180°180°
CRIRa80+ or Ra90+Ra80+ or Ra90+Ra80+ or Ra90+Ra80+ or Ra90+
Cutting Length3.57cm/1.4in7.14cm/2in14.3cm/5.6in42.7cm/16.8in
ColorRed/Green/Blue/Orange/Yellow/Lemon Yellow/Ice Blue/Marrsagreen/Hot Pink/Pink Purple
Max Run Length10m/32.8ft10m/32.8ft20m/65.6ft20m/65.6ft
Bending Diameter60mm60mm60mm60mm
IP RatingIP67IP67IP67IP67
Working Temperature-20~+45-20~+45-20~+45-20~+45
Storage Temperature-20~+60-20~+60-20~+60-20~+60
Warranty3years3years3years3years
CertificateUL/CE/ROHSUL/CE/ROHSUL/CE/ROHSUL/CE/ROHS

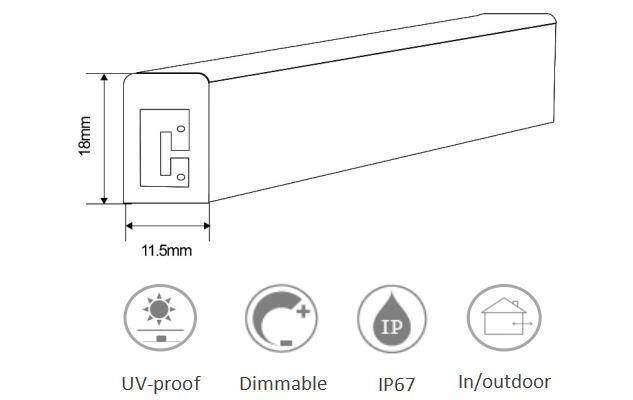

Dimension

Flat Neon Flex.jpg

Color

Matt Color Board.jpg


Accessories

Neon Light accessories.jpg


Installation Method

Installation Manuel.png

wiring diagram

Neon Light wiring connection.png
