Super mini LED Neon Flex (PVC) is good material to custom neon sign,it is soldering free,you don't need to use soldering station to weld the wires with PCB board,we supply Matt Pin for you to insert into the pure copper wires.
It is saving time and money.
1.Guide Line:Pure Copper wires 2x0.75m2
2.Light source:SMD2835
3.PCB:High-quality rolled copper PCB board,
4oz copper foil on both sides.
4.Beam Angel:180°
5.Material:Eco-Friendly PVC,anti-UV,PVC heat/cool stabilizer,high temp/low-temp resistant.
6.Light Effect:Vivid Neon lighting effect,uniform light,no dots
7.Waterproof: IP67
8.Warranty: 3 Years
9.MOQ: 1meter
10.Whatsapp/wechat:+86 134 1639 7586
Specification
| Item No | OL-M-NF-12V-A | OL-M-NF-12V-B | OL-M-NF-24V-A | OL-M-NF-24V-B |
| Size | 11.5X18mm | 11.5X18mm | 11.5X18mm | 11.5X18mm |
| Input Voltage | DC12V | DC12V | DC24V | DC24V |
| Power | 9W/m | 9W/m | 9W/m | 9W/m |
| LED TYPE | SMD2835 | SMD2835 | SMD2835 | SMD2835 |
| LED QTY | 84pcs/m | 84pcs/m | 84pcs/m | 84pcs/m |
| Beam Angle | 180° | 180° | 180° | 180° |
| CRI | Ra80+ or Ra90+ | Ra80+ or Ra90+ | Ra80+ or Ra90+ | Ra80+ or Ra90+ |
| Cutting Length | 3.57cm/1.4in | 7.14cm/2in | 14.3cm/5.6in | 42.7cm/16.8in |
| Color | Red/Green/Blue/Orange/Yellow/Lemon Yellow/Ice Blue/Marrsagreen/Hot Pink/Pink Purple | |||
| Max Run Length | 10m/32.8ft | 10m/32.8ft | 20m/65.6ft | 20m/65.6ft |
| Bending Diameter | 45mm | 45mm | 45mm | 45mm |
| IP Rating | IP67 | IP67 | IP67 | IP67 |
| Working Temperature | -20~+45℃ | -20~+45℃ | -20~+45℃ | -20~+45℃ |
| Storage Temperature | -20~+60℃ | -20~+60℃ | -20~+60℃ | -20~+60℃ |
| Warranty | 3years | 3years | 3years | 3years |
| Certificate | UL/CE/ROHS | UL/CE/ROHS | UL/CE/ROHS | UL/CE/ROHS |
Dimension

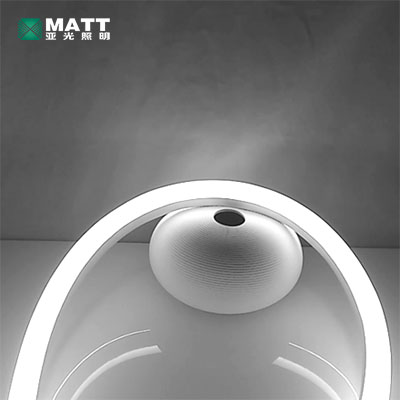

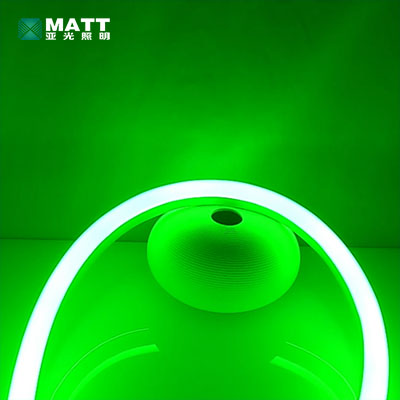

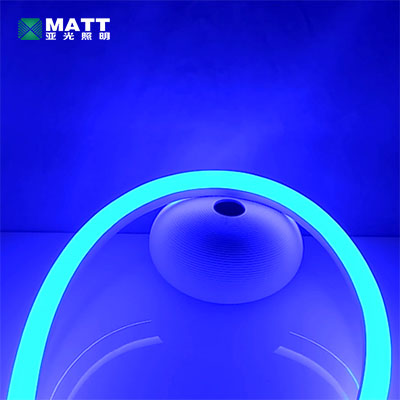

Color
Accessories
Installation Method
wiring diagram

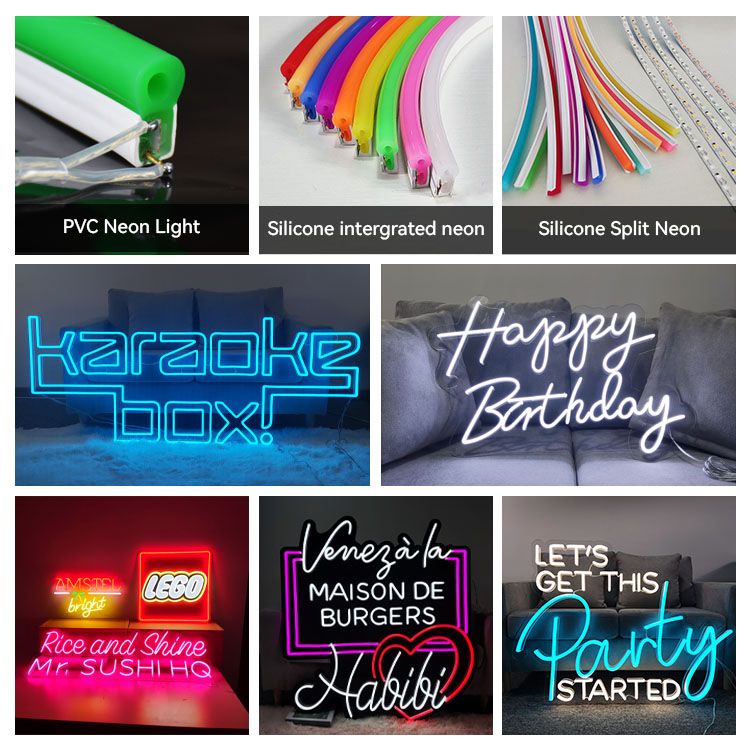

Application
